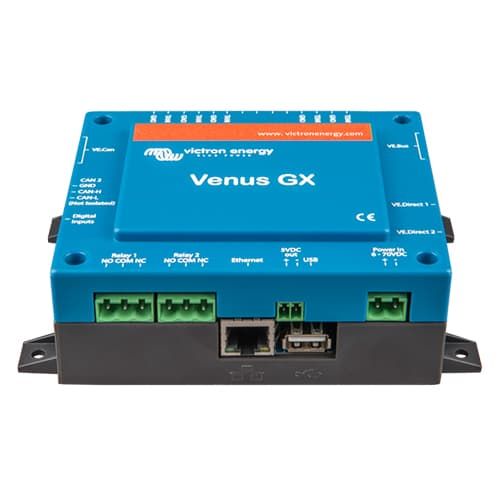

Venus GX

Venux GX nettengir flestöll Victron tæki og getur hlaðið upplýsingum upp í “skýið” svo þú getir fylgst með þinni notkun og framleiðslu. t.d. tekur Venux upplýsingar frá Inverterum, MultiPlus, Quattros, MPPT stýringum, BMV mælum og fleiri tækjum.

Bæklingur frá framleiðanda: Datasheet-Venus-GX-EN.pdf

Stuðningur við tæki

– Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
– BlueSolar MPPT Solar Chargers with a VE.Direct port.
– BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, then all information is combined as one.
– BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.
– BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable.
– Lynx Ion + Shunt
– Lynx Ion BMS
– Lynx Shunt VE.Can
– Skylla-i battery chargers
– NMEA2000 tank sensors
– A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.
– Fronius PV Inverters

When more than two VE.Direct products must be connected, USB can be used.
